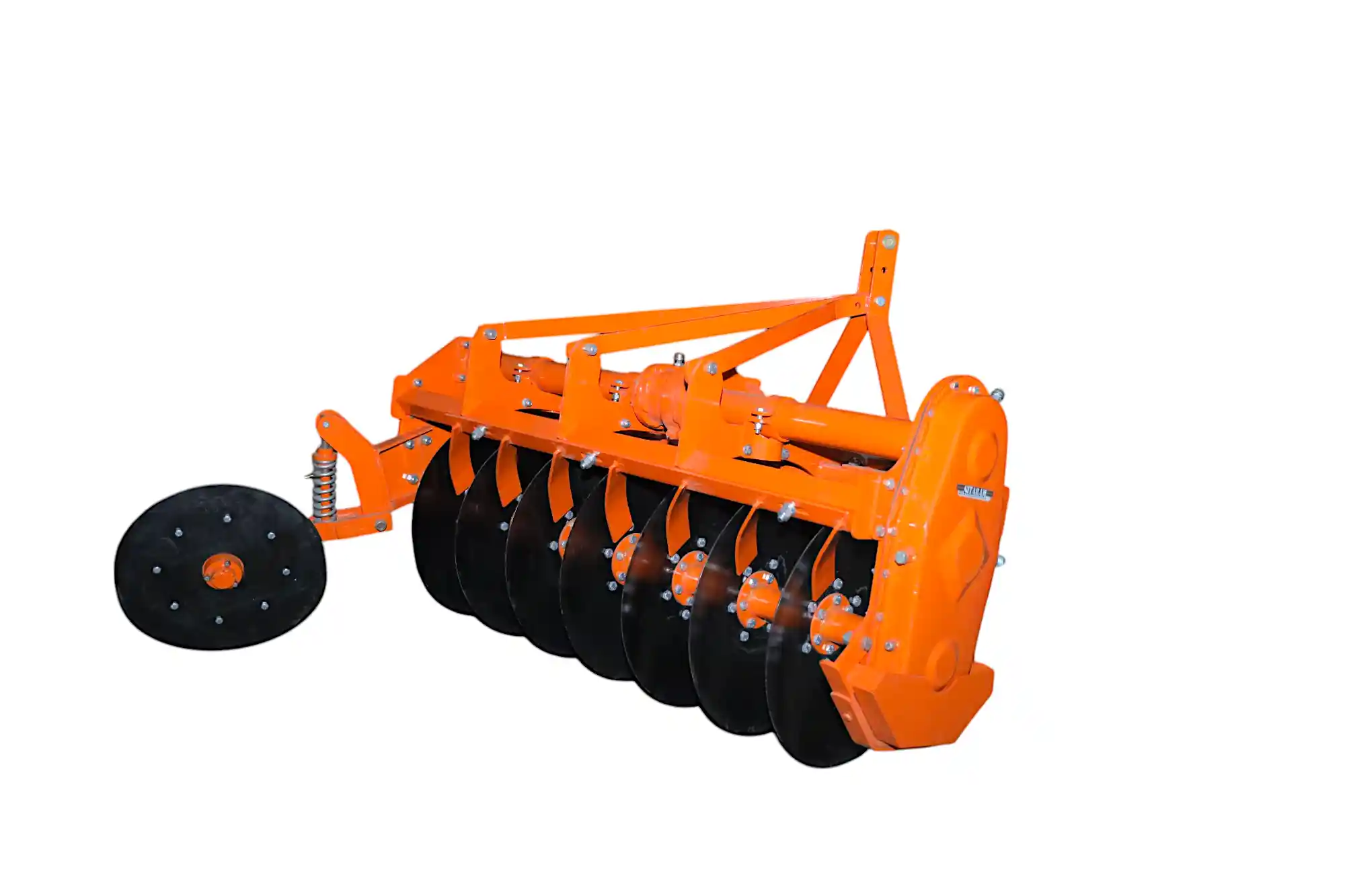

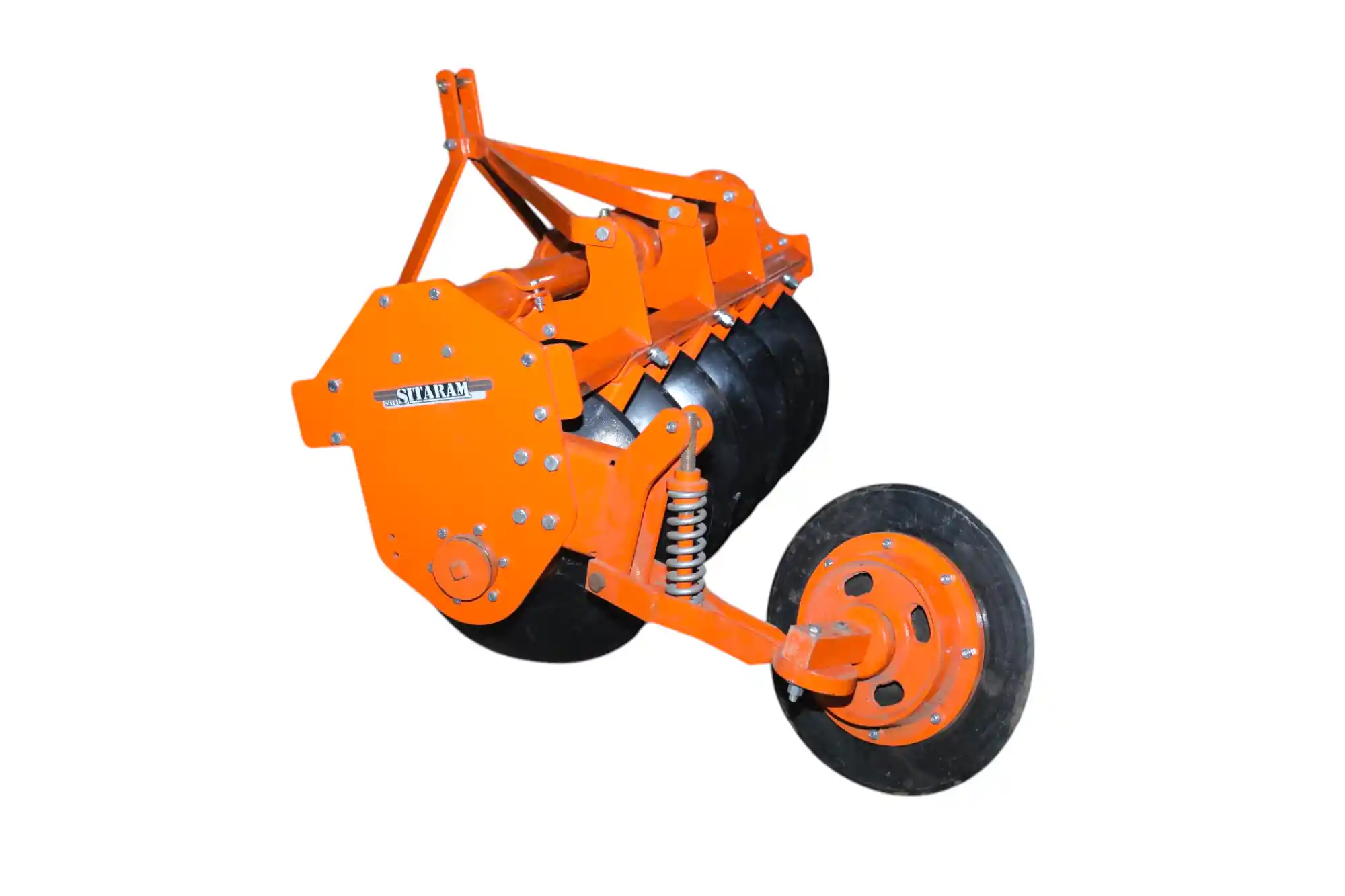

At Sitaram Agro Engineering, we offer robust and reliable Rotary Disc Harrows designed for efficient soil preparation. Engineered with precision and built to last, our disc harrows help break clods, chop weeds, and mix crop residue into the soil—ensuring a well-prepared seedbed for better crop yield.
Founded in 1995, Sitaram Argo Engineering started its journey as a local manufacturer of agriculter implements in surat, Gujrat, In 2005 Sitaram Argo Engineering got approval by government of india as a manufacturer of rotary tiller….
Heavy-Duty Frame: Built from high-grade steel to withstand tough field conditions.
Concave Disc Blades: Sharp and durable discs for effective soil cutting and mixing.
Adjustable Working Depth: Easily adapt the tillage depth as per your field’s needs.
Corrosion-Resistant Finish: Powder-coated for long-lasting performance.
Efficient Coverage: Available in various disc sizes and counts to suit different land sizes.
| Feature | Specification |
|---|---|
| Number of Discs | 12 to 24 |
| Disc Diameter | 16″ to 24″ |
| Working Width | 1.5 m to 3.0 m |
| Tractor Power Required | 40 – 80 HP |
| Mounting Type | 3-point linkage / hydraulic |
Description:-
CHARACTERISTIC | ARDH – 7 |
OVERALL LENGTH (MM) | 2100 |
OVERALL WIDTH (MM) | 1980 |
OVERALL HEIGHT (MM) | 1200 |
WORKING WIDTH (MM/INCH) | 1370/53.94 |
TRACTOR POWER (HP) | 45-60 |
3-POINT HITCH TYPE | CAT-1 |
NO. OF DISC PER ROTOR | 7 |
ROTOR RPM | 167 |
TRANSMISSION TYPE | CHAIN |
MAX. WORKING DEPTH (MM/INCH) | 205/8 |
DISTANCE BETWEEN DISC (MM) | 220 |
DRIVELINE SAFETY DEVICE | SHEAR BOLT |
WEIGHT APPROX (KG) | 535KG |
Seedbed preparation
Residue mixing and weed control
Breaking soil crust and aerating the field
Secondary tillage after primary ploughing
